- Description
Description
| Category | Specification |
|---|---|
| General | |

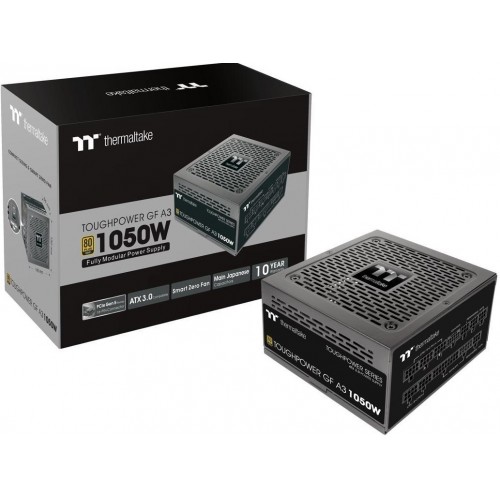

| Brand | Thermaltake |
| Series | Toughpower GF A3 Series |
| Model | PS-TPD-1050FNFAGU-L |
| Details | |
| Color | Black |
| Type | ATX / ATX (ATX 3.0 Compatible) |
| Maximum Power | 1050W |
| Fans | 1 x 120mm Fluid Dynamic Bearing Fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 5 x 6+2-Pin 12VHPWR Support Wattage: 600W |
| SATA Power Connector | 12 |
| Haswell Support | Yes |
| Max PSU Length | 150mm |
| Modular | Full Modular |
| Hold-up Time | >17msec |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP / UVP / OCP / OPP / OTP / SCP |
| Input Voltage | 100–240V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 16A–8A |
| Output | +3.3V@20A; +5V@20A; +12V@87.5A; -12V@0.3A; +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | FCC / ICES / CB / cTUVus |
| Connectors | |
| Main Power Connector | 1 × 24pin |
| ATX 12V / EPS 12V | 2 × (8pin/4+4pin) |
| PCIe 12VHPWR | 1 × 600W (12+4pin) |
| PCI-E (6+2pin) | 5 × |
| SATA (5pin) | 12 × |
| Peripheral (4pin) | 4 × |
| Floppy | 1 × |
| Features | |
| PCIe Gen 5 ready, designed with native PCIe 12+4pin modular interface | |
| Compatible with Intel ATX 3.0 specification | |
| PCIe Gen.5 600W 12VHPWR cable included | |
| 1050W continuous output at 45°C/113°F operating environment | |
| High quality Japanese 105°C/221°F main capacitors | |
| Fully modular with black low-profile flat cables | |
| Smart Zero Fan: auto-regulated fan speed for quiet operation | |
| High amperage single +12V rail design | |
| Ultra-quiet 120mm fluid dynamic bearing fan | |
| Dimension & Weight | |
| Dimensions | 5.9″(W) × 3.4″(H) × 5.5″(D) inches |
| Weight | 7.3 lbs |
